SpringBoot访问数据库
springboot 默认支持很多数据源 有：Hikari，Tomcat， Dbcp2，Generic。 springboot2.X默认数据源为：Hikari。下面还会讲到切换数据源到阿里的Druid， 同时和springboot桥接进行数据库访问的方式也有很多：JDBC，Mybatis，JPA
源码：DataSourceAutoConfiguration –>PooledDataSourceConfiguration可以看到数据源的配置
@Configuration
@Conditional({DataSourceAutoConfiguration.PooledDataSourceCondition.class})
@ConditionalOnMissingBean({DataSource.class, XADataSource.class})
@Import({Hikari.class, Tomcat.class, Dbcp2.class, Generic.class, DataSourceJmxConfiguration.class})
protected static class PooledDataSourceConfiguration {
protected PooledDataSourceConfiguration() {
}
}
JDBC访问数据库
1. 准备工作
pom.xml
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-jdbc</artifactId> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.47</version> </dependency>application.yml
spring: datasource: username: root password: url: jdbc:mysql://localhost:3306/jdbc driver-class-name: com.mysql.jdbc.Driver
2. 创建表
springboot创建表相关源码， 通过
DataSourceInitializer拿到数据源，可以创建表结构或者表数据
//创建表结构
public boolean createSchema() {
List<Resource> scripts = this.getScripts("spring.datasource.schema", this.properties.getSchema(), "schema");
if (!scripts.isEmpty()) {
if (!this.isEnabled()) {
logger.debug("Initialization disabled (not running DDL scripts)");
return false;
}
String username = this.properties.getSchemaUsername();
String password = this.properties.getSchemaPassword();
this.runScripts(scripts, username, password);
}
return !scripts.isEmpty();
}
//初始化表数据
public void initSchema() {
List<Resource> scripts = this.getScripts("spring.datasource.data", this.properties.getData(), "data");
if (!scripts.isEmpty()) {
if (!this.isEnabled()) {
logger.debug("Initialization disabled (not running data scripts)");
return;
}
String username = this.properties.getDataUsername();
String password = this.properties.getDataPassword();
this.runScripts(scripts, username, password);
}
}
//执行sql语句
private void runScripts(List<Resource> resources, String username, String password) {
if (!resources.isEmpty()) {
ResourceDatabasePopulator populator = new ResourceDatabasePopulator();
populator.setContinueOnError(this.properties.isContinueOnError());
populator.setSeparator(this.properties.getSeparator());
if (this.properties.getSqlScriptEncoding() != null) {
populator.setSqlScriptEncoding(this.properties.getSqlScriptEncoding().name());
}
Iterator var5 = resources.iterator();
while(var5.hasNext()) {
Resource resource = (Resource)var5.next();
populator.addScript(resource);
}
DataSource dataSource = this.dataSource;
if (StringUtils.hasText(username) && StringUtils.hasText(password)) {
dataSource = DataSourceBuilder.create(this.properties.getClassLoader()).driverClassName(this.properties.determineDriverClassName()).url(this.properties.determineUrl()).username(username).password(password).build();
}
DatabasePopulatorUtils.execute(populator, dataSource);
}
}
//获得脚本
private List<Resource> getScripts(String propertyName, List<String> resources, String fallback) {
if (resources != null) {
return this.getResources(propertyName, resources, true);
} else {
String platform = this.properties.getPlatform();
List<String> fallbackResources = new ArrayList();
fallbackResources.add("classpath*:" + fallback + "-" + platform + ".sql");
fallbackResources.add("classpath*:" + fallback + ".sql");
return this.getResources(propertyName, fallbackResources, false);
}
}
通过以上源码可以知道，想要执行创建表结构或者表数据的sql语句，默认将sql文件的名称修改为：
- schema-*.sql
- data-*.sql
或者在配置文件中直接指定：
spring:
datasource:
username: root
password:
url: jdbc:mysql://localhost:3306/jdbc
driver-class-name: com.mysql.jdbc.Driver
schema:
- classpath:department.sql
initialization-mode: always

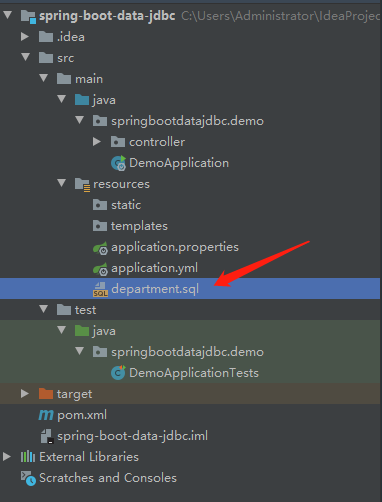

department.sql
DROP TABLE IF EXISTS `department`;
CREATE TABLE `department` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`departmentName` varchar(255) DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
直接运行Application，就可以生成表结构：
3. 简单查询

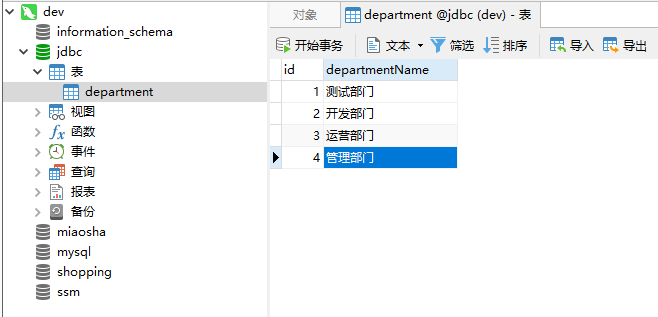

表数据
Controller
/**
* @program: spring-boot-data-jdbc
* @description: 通过JDBC的方式操作数据库
* @author: YuanChangYue
* @create: 2019-08-20 12:11
*/
@Controller
public class JDBCController {
@Autowired
JdbcTemplate jdbcTemplate;
@GetMapping("/deps")
@ResponseBody
public List<Map<String, Object>> queryList() {
return jdbcTemplate.queryForList("select * from department");
}
}

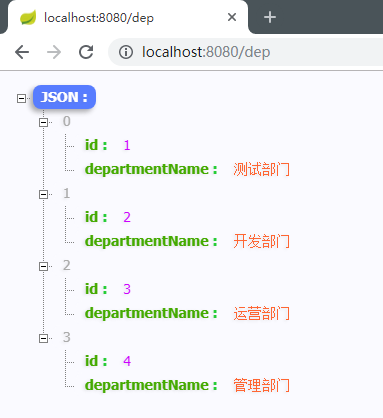

查询结果
整合Druid数据源
1. 添加maven依赖
<!-- https://mvnrepository.com/artifact/com.alibaba/druid -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.1.10</version>
</dependency>
<!-- https://mvnrepository.com/artifact/log4j/log4j -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.17</version>
</dependency>

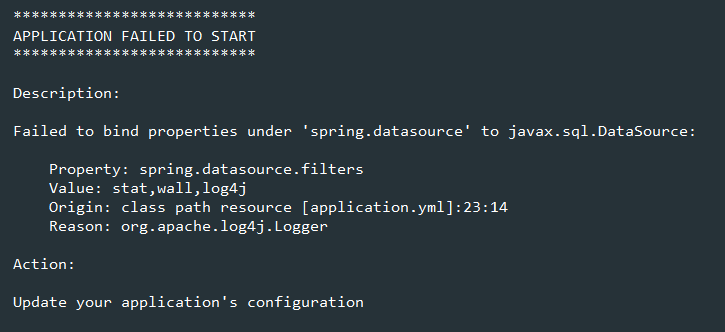

注意:需要添加 log4j 的依赖，否者会报错
2. application.yml
spring:
datasource:
username: root
password:
url: jdbc:mysql://localhost:3306/jdbc
driver-class-name: com.mysql.jdbc.Driver
type: com.alibaba.druid.pool.DruidDataSource
3. 测试类检测是否切换成功
package springbootdatajdbc.demo;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
import javax.sql.DataSource;
import java.sql.Connection;
import java.sql.SQLException;
@RunWith(SpringRunner.class)
@SpringBootTest
public class DemoApplicationTests {
@Autowired
DataSource dataSource;
@Test
public void contextLoads() throws SQLException {
System.out.println("dataSource.getClass() = " + dataSource.getClass());
Connection connection = dataSource.getConnection();
System.out.println("connection = " + connection);
connection.close();
}
}
4. Druid数据源其他配置
spring:
datasource:
username: root
password:
url: jdbc:mysql://localhost:3306/jdbc
driver-class-name: com.mysql.jdbc.Driver
type: com.alibaba.druid.pool.DruidDataSource
# 数据源其他配置
initialSize: 5
minIdle: 5
maxActive: 20
maxWait: 60000
timeBetweenEvictionRunsMillis: 60000
minEvictableIdleTimeMillis: 300000
validationQuery: SELECT 1 FROM DUAL
testWhileIdle: true
testOnBorrow: false
testOnReturn: false
poolPreparedStatements: true
# 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
filters: stat,wall,log4j
maxPoolPreparedStatementPerConnectionSize: 20
useGlobalDataSourceStat: true
connectionProperties: druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500
5. Druid的配置类
package springbootdatajdbc.demo.config;
import com.alibaba.druid.pool.DruidDataSource;
import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import javax.sql.DataSource;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;
/**
* @program: spring-boot-data-jdbc
* @description: Druid配置类
* @author: YuanChangYue
* @create: 2019-08-20 12:40
*/
@Configuration
public class DruidConfig {
@ConfigurationProperties(prefix = "spring.datasource")
@Bean
public DataSource druid() {
return new DruidDataSource();
}
/**
* 配置后台监控
* 1 . 配置管理后台的Servlet
*/
@Bean
public ServletRegistrationBean statViewServlet() {
ServletRegistrationBean<StatViewServlet> bean = new ServletRegistrationBean<>(new StatViewServlet(), "/druid/*");
Map<String, String> initParams = new HashMap<>();
initParams.put("loginUsername", "admin");
initParams.put("loginPassword", "123456");
initParams.put("allow", "");
bean.setInitParameters(initParams);
return bean;
}
/**
* 2 . 配置监听web的filter
*/
@Bean
public FilterRegistrationBean webStatFilter() {
FilterRegistrationBean<WebStatFilter> bean = new FilterRegistrationBean<>(new WebStatFilter());
Map<String, String> initParams = new HashMap<>();
initParams.put("exclusions", "*.js,*.css,/druid/*");
bean.setInitParameters(initParams);
bean.setUrlPatterns(Arrays.asList("/*"));
return bean;
}
}

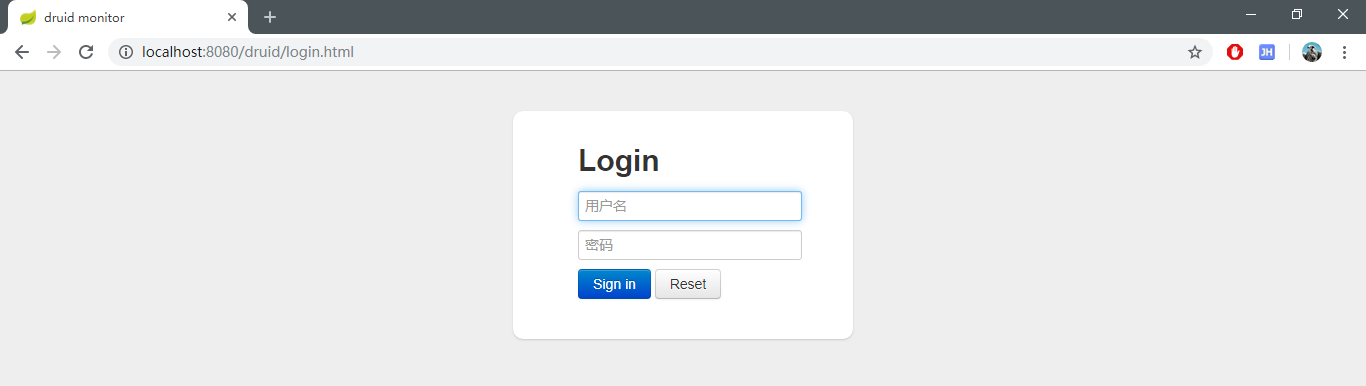

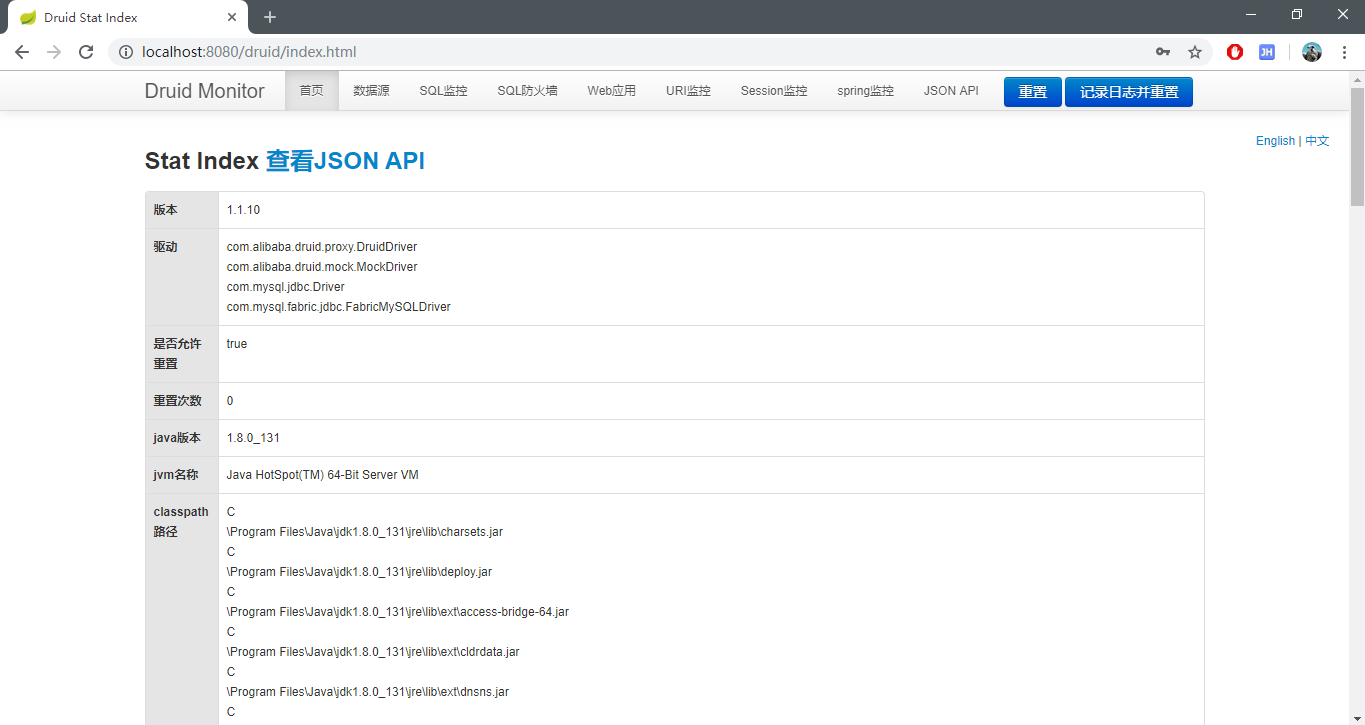

最后访问 : http://localhost:8080/druid
整合MyBatis

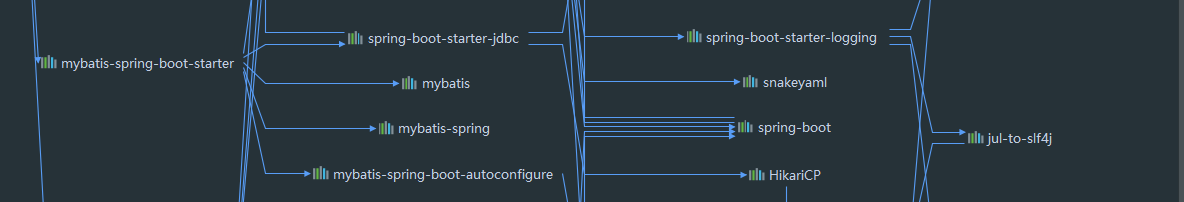

1. 添加依赖
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.7.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>spring-boot-data-mybatis</groupId>
<artifactId>demo</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>demo</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>2.1.0</version>
</dependency>
<!-- https://mvnrepository.com/artifact/com.alibaba/druid -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.1.10</version>
</dependency>
<!-- https://mvnrepository.com/artifact/log4j/log4j -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.17</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
2. 创建实体类
package springbootdatamybatis.demo.bean;
/**
* @program: spring-boot-data-mybatis
* @description:
* @author: YuanChangYue
* @create: 2019-08-20 13:43
*/
public class Department {
private Integer Id;
private String departmentName;
public Integer getId() {
return Id;
}
public void setId(Integer id) {
Id = id;
}
public String getDepartmentName() {
return departmentName;
}
public void setDepartmentName(String departmentName) {
this.departmentName = departmentName;
}
}
package springbootdatamybatis.demo.bean;
/**
* @program: spring-boot-data-mybatis
* @description:
* @author: YuanChangYue
* @create: 2019-08-20 13:46
*/
public class Employee {
private Integer id;
private String lastName;
private String email;
private Integer gender;
private int dId;
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getLastName() {
return lastName;
}
public void setLastName(String lastName) {
this.lastName = lastName;
}
public String getEmail() {
return email;
}
public void setEmail(String email) {
this.email = email;
}
public Integer getGender() {
return gender;
}
public void setGender(Integer gender) {
this.gender = gender;
}
public int getdId() {
return dId;
}
public void setdId(int dId) {
this.dId = dId;
}
}
3. 注解版
package springbootdatamybatis.demo.mapper;
import org.apache.ibatis.annotations.*;
import org.springframework.stereotype.Repository;
import springbootdatamybatis.demo.bean.Department;
@Repository
@Mapper
public interface DepartmentMapper {
@Select("select * from department where id = #{id} ")
public Department getDepById(Integer id);
@Delete("delete from department where id = #{id}")
public int deleteDepById(Integer id);
@Options(useGeneratedKeys = true, keyProperty = "id")
@Insert("insert into department(departmentName) values(#{departmentName})")
public int insertDept(Department department);
@Update("update department set departmentName=#{departmentName} where id = #{id}")
public int updateDept(Department department);
}
这里为了方便，没有加入serive层
package springbootdatamybatis.demo.controller;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.ResponseBody;
import springbootdatamybatis.demo.bean.Department;
import springbootdatamybatis.demo.mapper.DepartmentMapper;
/**
* @program: spring-boot-data-mybatis
* @description: 部门控制器
* @author: YuanChangYue
* @create: 2019-08-20 13:56
*/
@Controller
public class DeptController {
@Autowired
DepartmentMapper departmentMapper;

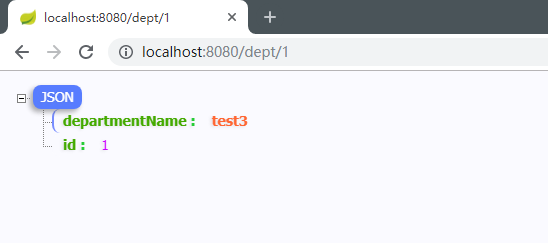

@GetMapping("/dept/{id}")
@ResponseBody
public Department getDep(@PathVariable("id") Integer id) {
return departmentMapper.getDepById(id);
}

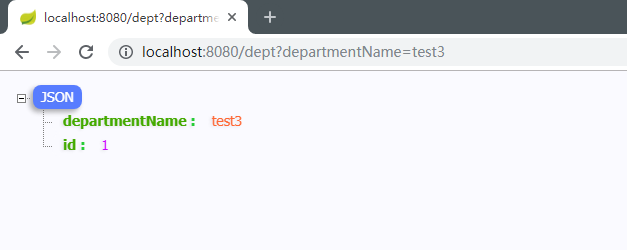

@GetMapping("/dept")
@ResponseBody
public Department insertDept(Department department) {
departmentMapper.insertDept(department);
return department;
}
}
package springbootdatamybatis.demo.config;
import org.mybatis.spring.boot.autoconfigure.ConfigurationCustomizer;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* @program: spring-boot-data-mybatis
* @description: Mybatis 配置类
* @author: YuanChangYue
* @create: 2019-08-20 15:47
*/
@Configuration
public class MybatisConfig {
/**
* 自定义配置 支持驼峰
*/
@Bean
public ConfigurationCustomizer configurationCustomizer() {
return configuration -> configuration.setMapUnderscoreToCamelCase(true);
}
}
4. mapper配置版
package springbootdatamybatis.demo.mapper;
import org.springframework.stereotype.Repository;
import springbootdatamybatis.demo.bean.Employee;
@Repository
public interface EmployeeMapper {
public Employee getEmpById(Integer id);
}
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="springbootdatamybatis.demo.mapper.EmployeeMapper">
<select id="getEmpById" resultType="springbootdatamybatis.demo.bean.Employee">
select * from employee where id = #{id}
</select>
</mapper>
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<settings>
<setting name="mapUnderscoreToCamelCase" value="true"/>
</settings>
</configuration>
package springbootdatamybatis.demo.controller;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.ResponseBody;
import springbootdatamybatis.demo.bean.Employee;
import springbootdatamybatis.demo.mapper.EmployeeMapper;
/**
* @program: spring-boot-data-mybatis
* @description:
* @author: YuanChangYue
* @create: 2019-08-20 16:20
*/
@Controller
public class EmpController {
@Autowired
EmployeeMapper employeeMapper;
@ResponseBody

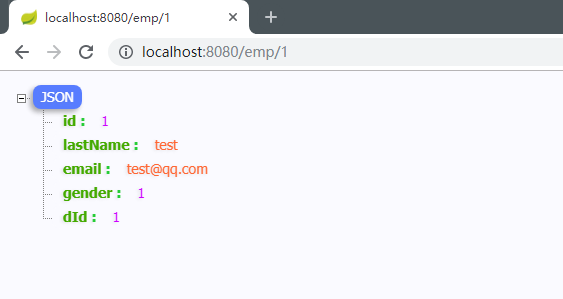

@GetMapping("/emp/{id}")
public Employee getEmpById(@PathVariable("id") Integer id) {
return employeeMapper.getEmpById(id);
}
}
spring:
datasource:
# 数据源基本配置
username: root
password:
driver-class-name: com.mysql.jdbc.Driver
url: jdbc:mysql://localhost:3306/mybatis
type: com.alibaba.druid.pool.DruidDataSource
# 数据源其他配置
initialSize: 5
minIdle: 5
maxActive: 20
maxWait: 60000
timeBetweenEvictionRunsMillis: 60000
minEvictableIdleTimeMillis: 300000
validationQuery: SELECT 1 FROM DUAL
testWhileIdle: true
testOnBorrow: false
testOnReturn: false
poolPreparedStatements: true
# 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
filters: stat,wall,log4j
maxPoolPreparedStatementPerConnectionSize: 20
useGlobalDataSourceStat: true
connectionProperties: druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500
# schema:
# - classpath:sql/department.sql
# - classpath:sql/employee.sql
# initialization-mode: always
mybatis:
config-location: classpath:mybatis/mybatis-config.xml
mapper-locations: classpath:mybatis/mapper/*
整合 SpringData JPA
1. 实体类
package com.changyue.springbootdatajpa.entity;
import javax.persistence.*;
/**
* @program: spring-boot-data-jpa
* @description: 用户
* @author: YuanChangYue
* @create: 2019-08-20 16:36
*/
@Entity
@Table(name = "tbl_user")
@JsonIgnoreProperties(value = {"hibernateLazyInitializer", "handler"})
public class User {
@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
private Integer id;
@Column(name = "last_name", length = 50)
private String lastName;
@Column
private String email;
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getLastName() {
return lastName;
}
public void setLastName(String lastName) {
this.lastName = lastName;
}
public String getEmial() {
return email;
}
public void setEmial(String emial) {
this.email = emial;
}
}
2. Dao接口
package com.changyue.springbootdatajpa.repository;
import com.changyue.springbootdatajpa.entity.User;
import org.springframework.data.jpa.repository.JpaRepository;
/**
* 继承JpaRepository
*/
public interface UserRepository extends JpaRepository<User, Integer> {
}
3. 配置
spring:
datasource:
url: jdbc:mysql://localhost:3306/jpa
username: root
password:
driver-class-name: com.mysql.jdbc.Driver
jpa:
hibernate:
#更新和创建表结构
ddl-auto: update
#控制台显示sql
show-sql: true

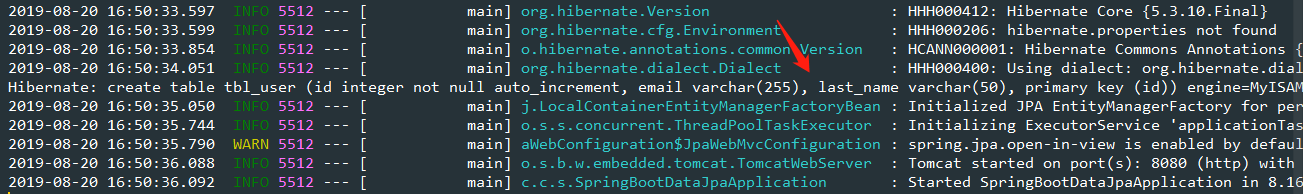

完成以上操作，会根据实体类在数据库中创建表
4. 简单查询
package com.changyue.springbootdatajpa.controller;
import com.changyue.springbootdatajpa.entity.User;
import com.changyue.springbootdatajpa.repository.UserRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
/**
* @program: spring-boot-data-jpa
* @description:
* @author: YuanChangYue
* @create: 2019-08-20 16:52
*/
@RestController
public class UserController {
@Autowired
UserRepository userRepository;
/**

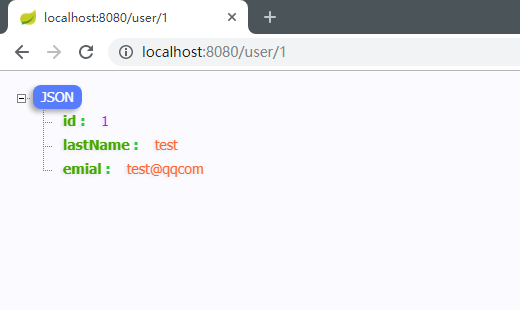

* 简单通过id查询出use信息
*
* @return user json
*/
@GetMapping("/user/{id}")
public User getUserById(@PathVariable("id") Integer id) {
return userRepository.getOne(id);
}
}
